CKEditor

CKEditor is a ready-for-use HTML text editor designed to simplify web content creation. It's a WYSIWYG editor that brings common word processor features directly to your web pages.

If you are working on project where you have scenario of writing bunch of text, formatting it, saving in database or getting from database then this is the best Plugin I can say. I am explaining how we can integrate this with sample ASP.NET project.

Step 1: Download latest version of CKEditor from here http://ckeditor.com/download

Step 2: Create sample ASP.NET application. It may be MVC or normal depends on your requirement. (Well, I am using MVC as I love it).

Step 3: Create one AddIns folder in your solution and keep downloaded CKEditor folder in that.

Step 4: Downloaded CKEditor folder will be having all supported Javascript files which makes editor.

Step 5: In you web page, where you want CKEditor, add reference to CKEditor.js file which is inside CKEditor folder like below,

<script type="text/javascript" src="<%= Url.Content("~/AddIns/CKeditor/ckeditor.js") %>"></script>

Step 5: Add textarea element in your ASPX page, which you want to make it as CKEdiitor like below,

<textarea id="textContent"></textarea>

Step 6: Write the following javascript code to call method of CKEditor which makes CKEditor to appear in your page,

<script type="text/javascript">

        $(document).ready(function () {

            showEditor("textContent", "840px", "60px", false);

         });

</script>

The above code calls showEditor method of CKEditor which makes your normal textarea to CKEditor.

Step 7: Add following method at the end of your CKEditor.js file which inturn calls some javascript function to make CKEditor.
function showEditor(srcId, w, h, br) {
    var edtr = CKEDITOR.replace(srcId, { enterMode: CKEDITOR.ENTER_BR, width: w, height:h});
    edtr.on('instanceReady', function (e) { if (br) { $('#' + edtr.id + '_top').hide(); } $('span .cke_toolbar_break').remove(); });
    edtr.config.readOnly = br;
    return edtr;

}

Step 8: Now run your application and see the magic, you can see CKEditor with all controls for Copy, paste, formatting etc.

This makes very much easy for user to enter text and format it easily. In my next article, I will be explain how to integrate WIRIS editor with CKEditor. Stay tuned.

Hope this is useful. Thank you.

HTML5 Audio & Video - Cross Browser

Benefits of HTML5 Media is that you can leverage your HTML, CSS and JavaScript skills rather than learning Flash or Silverlight. If you can create buttons in HTML and control them with JavaScript, you already know all you need to develop HTML5 media. HTML5 media has built-in support for captions and subtitles using the new track element, and proposals for additional features—such as direct byte access for video manipulation—are already being considered.

HTML5 Video & Audio tags works perfectly in IE 9 and above, Firefox & Chrome since these browsers support for HTML5. These browsers support for MP4, Ogg & WebM files. MP4 support for the remaining one third (Windows XP, Mac OS X and Linux) in Firefox is still in progress.

HTML5 Video & Audio JavaScript Libraries:

To make HTML5 Video work in IE8, you need to include some javascript, flash & css files. This javascript create flash player and add all controls(play/pause, time duration, time rail, volume, full screen etc) explicitly. In HTML5 Video tag, you will get all these in-built. Since IE8 doesn't support video tag, we have to add flash player, all these controls.

There are many javascript libraries are available for cross-browsing. Here I am using mediaelement.js file. You can download it from here, http://mediaelementjs.com/. You need to add, mediaelement.js, mediaelementplayer.css & flashmediaelement.swf files into your solution. You will get all these files in build folder of downloaded file.

Step 1: Add Scripts & Styles:

<code><script src="jquery.js"></scrupt>

<script src="mediaelement-and-player.min.js"></script>

<link rel="stylesheet" href="mediaelementplayer.css"/></code>

Step 2: Add Video tag

<video src="myvideo.mp4" width="320" height="240"></video>

Step 3: Convert all <video> tags to MediaElement.js using jQuery
<script>
// using jQuery
$('video').mediaelementplayer(/* Options */);
</script>

Now the video works fine in IE 8. Make sure you will copy all the image files from downloaded file, otherwise you cannot see play/pause, volume, time rail & etc buttons.

Step 4: Player options
You can five some of the player options which are not mandatory ofcource.

$('video').mediaelementplayer({
    // if the <video width> is not specified, this is the default
    defaultVideoWidth: 480,
    // if the <video height> is not specified, this is the default
    defaultVideoHeight: 270,
    // if set, overrides <video width>
    videoWidth: -1,
    // if set, overrides <video height>
    videoHeight: -1,
    // width of audio player
    audioWidth: 400,
    // height of audio player
    audioHeight: 30,
    // initial volume when the player starts
    startVolume: 0.8,
    // useful for <audio> player loops
    loop: false,
    // enables Flash and Silverlight to resize to content size
    enableAutosize: true,
    // the order of controls you want on the control bar (and other plugins below)
    features: ['playpause','progress','current','duration','tracks','volume','fullscreen'],
    // Hide controls when playing and mouse is not over the video
    alwaysShowControls: false,
    // force iPad's native controls
    iPadUseNativeControls: false,
    // force iPhone's native controls
    iPhoneUseNativeControls: false,
    // force Android's native controls
    AndroidUseNativeControls: false,
    // forces the hour marker (##:00:00)
    alwaysShowHours: false,
    // show framecount in timecode (##:00:00:00)
    showTimecodeFrameCount: false,
    // used when showTimecodeFrameCount is set to true
    framesPerSecond: 25,
    // turns keyboard support on and off for this instance
    enableKeyboard: true,
    // when this player starts, it will pause other players
    pauseOtherPlayers: true,
    // array of keyboard commands
    keyActions: []
});

Enjoy HTML5 Video in IE8. Remember, this works fine in IE7 too.

Hope this is useful

Thank you.

Bing Map On Windows Store App

In this tutorial I will explain how to use Bing Map for Windows Store Application.Here I will explain how to display your location on a Bing Map and then test your app with a variety of locations using the Simulator included in Microsoft Visual Studio 2012.

Step 1 : Download and install Bing Map SDK for Windows Store App. In Visual Studio 2012, go to Tools|Extensions and Updates. Click on online and write Bing Map SDK in search box. Install Bing Map SDK for Windows Store.

Step 2 : Register and create Bing Map Keys for your application. Register as a user on the Bing Maps Portal and then follow the instructions for Getting a Bing Maps Key for your app. Later, we'll use the key that is generated when we insert the Bing Maps control into our project.

Step 3: Open of Visual Studio 2012.

Step 4: Create a new project

Create a new project, choosing a Blank App (XAML) from the Visual C# > Windows Store project types. Name your app SimpleMapping.

Step 5: Set your target platform. Open the Configuration Manager from the Build menu and set your Active solution platform to x86 or x64.

Step 6: Add the Bing Maps references. In the Solution Explorer, right-click References and add references to Bing Maps for C#, C++, or Visual Basic and Microsoft Visual C++ Runtime Package.

Step 7: Set the Location capability. Open the Package.appxmanifest file and go to the Capabilities tab. Select the Location capability.



Step 8: Add classes for the 10-meter and 100-meter location icons

1. In the Solution Explorer, right-click the SimpleMapping project and add a New Item. Select User Control and name the page LocationIcon10m.xaml.
2. Open LocationIcon10m.xaml and copy the following XML into it (replacing the original contents of the file). This code provides an icon to display when the location data is accurate down to about 10 meter.


   <UserControl
       x:Class="SimpleMapping.LocationIcon10m"
       xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
       xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
       xmlns:local="using:SimpleMapping"
       xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
       xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
       mc:Ignorable="d">

       <Canvas>
           <Ellipse Height="25" Width="25" Fill="#FFF0F0F0" Margin="-12.5,-12.5,0,0"></Ellipse>
           <Ellipse Height="20" Width="20" Fill="Black" Margin="-10,-10,0,0"></Ellipse>
           <Ellipse Height="10" Width="10" Fill="White" Margin="-5,-5,0,0"></Ellipse>
       </Canvas>

   </UserControl>

3. In the Solution Explorer, right-click the SimpleMapping project and add a New Item. Select User Control and name the page LocationIcon100m.xaml.
4. Open LocationIcon100m.xaml and copy the following XML into it (replacing the original contents of the file). This code provides an icon to display when the location data is accurate down to about 100 meters. Note that if we have even less accurate data, we will not display an icon and will only show a region on the map.

   <UserControl
       x:Class="SimpleMapping.LocationIcon100m"
       xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
       xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
       xmlns:local="using:SimpleMapping"
       xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
       xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
       mc:Ignorable="d">

       <Canvas>
           <Ellipse Height="55" Width="55" Fill="Black" Opacity=".35" Margin="-27.5,-27.5,0,0"></Ellipse>
           <Ellipse Height="50" Width="50" Fill="CornflowerBlue" Opacity=".65" Margin="-25,-25,0,0"></Ellipse>
           <Ellipse Height="25" Width="25" Fill="#FFF0F0F0" Margin="-12.5,-12.5,0,0"></Ellipse>
           <Ellipse Height="20" Width="20" Fill="Black" Margin="-10,-10,0,0"></Ellipse>
           <Ellipse Height="10" Width="10" Fill="White" Margin="-5,-5,0,0"></Ellipse>
       </Canvas>
   </UserControl>



 Step 9: Lay out a page to display the map

1. Open the file MainPage.xaml and copy the following XML into it (replacing its original contents). This XML will display one button for retrieving the location, one button to cancel the operation, six text boxes for displaying the location data and labels, and one map control for displaying the location.

   <Grid>

   <Button x:Name="MapCurrentLoc" Content="Map Current Location" HorizontalAlignment="Left" Margin="29,31,1157,0" VerticalAlignment="Top" Click="MapLocationButton_Click" Height="38"/>
   <Maps:Map x:Name="Map" Margin="0,120,0,0" Credentials="Insert Your Bing Maps Key Here"/>
   <Button x:Name="CancelGetLocationButton" Content="Cancel" HorizontalAlignment="Left" Margin="242,31,0,0" VerticalAlignment="Top" Click="CancelGetLocationButton_Click"/>
   <TextBox x:Name="MessageTextbox" HorizontalAlignment="Left" Margin="354,37,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="605" Background="{StaticResource ButtonBackgroundThemeBrush}" Foreground="{StaticResource ButtonForegroundThemeBrush}" BorderBrush="{StaticResource ButtonBackgroundThemeBrush}"/>
   <TextBox HorizontalAlignment="Left" Margin="1046,10,0,0" TextWrapping="Wrap" Text="Latitude:" VerticalAlignment="Top" Background="{StaticResource ButtonBackgroundThemeBrush}" BorderBrush="{StaticResource ButtonBackgroundThemeBrush}" Foreground="{StaticResource ButtonForegroundThemeBrush}"/>
   <TextBox HorizontalAlignment="Left" Margin="1046,42,0,0" TextWrapping="Wrap" Text="Longitude:" VerticalAlignment="Top" Background="{StaticResource ButtonBackgroundThemeBrush}" BorderBrush="{StaticResource ButtonBackgroundThemeBrush}" Foreground="{StaticResource ButtonForegroundThemeBrush}"/>
   <TextBox HorizontalAlignment="Left" Margin="1046,74,0,0" TextWrapping="Wrap" Text="Accuracy:" VerticalAlignment="Top" Background="{StaticResource ButtonBackgroundThemeBrush}" BorderBrush="{StaticResource ButtonBackgroundThemeBrush}" Foreground="{StaticResource ButtonForegroundThemeBrush}"/>
   <TextBox x:Name="LatitudeTextbox" HorizontalAlignment="Left" Margin="1165,10,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Background="{StaticResource ButtonBackgroundThemeBrush}" BorderBrush="{StaticResource ButtonBackgroundThemeBrush}" Foreground="{StaticResource ButtonForegroundThemeBrush}"/>
   <TextBox x:Name="LongitudeTextbox" HorizontalAlignment="Left" Margin="1165,42,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Background="{StaticResource ButtonBackgroundThemeBrush}" BorderBrush="{StaticResource ButtonBackgroundThemeBrush}" Foreground="{StaticResource ButtonForegroundThemeBrush}"/>
   <TextBox x:Name="AccuracyTextbox" HorizontalAlignment="Left" Margin="1165,74,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Background="{StaticResource ButtonBackgroundThemeBrush}" BorderBrush="{StaticResource ButtonBackgroundThemeBrush}" Foreground="{StaticResource ButtonForegroundThemeBrush}"/>

   </Grid>

  2. Insert the Bing Maps Key you acquired earlier into the Map control's Credentials attribute.

Step 10 : Add namespaces in your MainPage.xaml.cs file

using Windows.Devices.Geolocation;
using System.Threading;
using System.Threading.Tasks;
using Bing.Maps;

Step 11: Add the member variables in your MainPage.xaml.cs file

public sealed partial class MainPage : Page

{
   // member variables to add
   private Geolocator _geolocator = null;
   private CancellationTokenSource _cts = null;
   LocationIcon10m _locationIcon10m;
   LocationIcon100m _locationIcon100m;

 Step 12 : Initialize the member variables

 public MainPage()
 {
     this.InitializeComponent();
     _geolocator = new Geolocator();
     _locationIcon10m = new LocationIcon10m();
     _locationIcon100m = new LocationIcon100m();
 }

 Step 13 : Handle the OnNavigatedTo event. In MainPage.xaml.cs, replace the OnNavigatedTo event handler with this code, which initializes the states of the Get Location and Cancel buttons.

protected override void OnNavigatedTo(NavigationEventArgs e)
{
      MapCurrentLoc.IsEnabled = true;
      CancelGetLocationButton.IsEnabled = false;
}

Step 14 : Handle the MapCurrentLoc_Click event. Write the following in that event,

 private async void MapCurrentLoc_Click(object sender, RoutedEventArgs e)
 {
     // Change the state of our buttons.
     MapCurrentLoc.IsEnabled = false;
     CancelGetLocationButton.IsEnabled = true;

     // Remove any previous location icon.
     if (Map.Children.Count > 0)
     {
        Map.Children.RemoveAt(0);
     }

     try
     {
        // Get the cancellation token.
        _cts = new CancellationTokenSource();
        CancellationToken token = _cts.Token;

        MessageTextbox.Text = "Waiting for update...";

                // Get the location.
                Geoposition pos = await _geolocator.GetGeopositionAsync().AsTask(token);

                MessageTextbox.Text = "";

                Location location = new Location(pos.Coordinate.Latitude, pos.Coordinate.Longitude);

                // Now set the zoom level of the map based on the accuracy of our location data.
                // Default to IP level accuracy. We only show the region at this level - No icon is displayed.
                double zoomLevel = 13.0f;

                // if we have GPS level accuracy
                if (pos.Coordinate.Accuracy <= 10)
                {
                    // Add the 10m icon and zoom closer.
                    Map.Children.Add(_locationIcon10m);
                    MapLayer.SetPosition(_locationIcon10m, location);
                    zoomLevel = 15.0f;
                }
                // Else if we have Wi-Fi level accuracy.
                else if (pos.Coordinate.Accuracy <= 100)
                {
                    // Add the 100m icon and zoom a little closer.
                    Map.Children.Add(_locationIcon100m);
                    MapLayer.SetPosition(_locationIcon100m, location);
                    zoomLevel = 14.0f;
                }

                // Set the map to the given location and zoom level.
                Map.SetView(location, zoomLevel);

                // Display the location information in the textboxes.
                LatitudeTextbox.Text = pos.Coordinate.Latitude.ToString();
                LongitudeTextbox.Text = pos.Coordinate.Longitude.ToString();
                AccuracyTextbox.Text = pos.Coordinate.Accuracy.ToString();
            }
            catch (System.UnauthorizedAccessException)
            {
                MessageTextbox.Text = "Location disabled.";

                LatitudeTextbox.Text = "No data";
                LongitudeTextbox.Text = "No data";
                AccuracyTextbox.Text = "No data";
            }
            catch (TaskCanceledException)
            {
                MessageTextbox.Text = "Operation canceled.";
            }
            finallyep
            {
                _cts = null;
            }

            // Reset the buttons.
            MapCurrentLoc.IsEnabled = true;
            CancelGetLocationButton.IsEnabled = false;
        }

 The above code performs the following,

• Changes the state of the Get Location and Cancel buttons.
• Removes any previous location icon that may have been used.
• Sets up a cancellation token so that the user can cancel the operation if it is taking too long.
• Asynchronously gets the location.
• Selects a location icon based on the accuracy of the data retrieved.
• Set the map to the location.
• Handles some error conditions.
• Resets the buttons after the location has been retrieved.

Step 15: Handle the CancelGetLocationButton_Click event. Write the following code in that method.
This code cancels the asynchronous call to get the location if the user presses the Cancel button. It also resets the state of the buttons.

 private void CancelGetLocationButton_Click(object sender, RoutedEventArgs e)
        {
            if (_cts != null)
            {
                _cts.Cancel();
                _cts = null;
            }

            MapCurrentLoc.IsEnabled = true;
            CancelGetLocationButton.IsEnabled = false;
        }

Step 16: Handle the OnNavigatingFrom event. Write the following code in that event handler.
This code cancels the asynchronous call to get the location if the user leaves the page.

protected override void OnNavigatingFrom(NavigatingCancelEventArgs e)
        {
            if (_cts != null)
            {
                _cts.Cancel();
                _cts = null;
            }

            base.OnNavigatingFrom(e);
        }

Step 17: Build and run the app.

1. The first time you run the sample, a prompt asks whether the app can use your location. Choose the Allow option.
2. Click the Get Location button to get the current location.

Step 18: Test the app in the Simulator. To test your app with different locations, change the Target Device in Visual Studio 2012 from Local Machine to Simulator.

This is how Bing map works on Windows Store App.

Thanks.



SQLite In Windows Store App

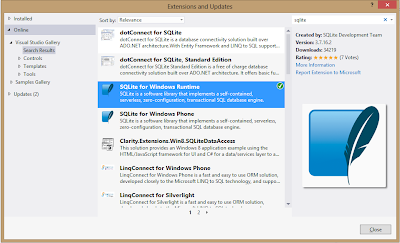

The first thing you need to do is get SQLite. Select Tools|Extensions and Updates. In the Extensions and Updates dialog, select Online. Type sqlite in the search box. You will see SQLite for Windows Runtime. This is the SQLite binaries packaged up by the SQLite team. Install this.



Next, create a new C# Windows Store project. Select the Blank App template and name the project SQLiteDemo. Next, add a reference to both SQLite and the VC++ Runtime Package.

After you add the references, you will notice yellow triangles in the Solution Explorer. This is never a good sign. Build the app and you will see the following errors:



When you create a new C# or VB Windows Store project in Visual Studio, it supports all architectures (x86, x64 and ARM) by default. But since you added SQLite to the project, you can’t build one package that targets all architectures. You have to build one target for each. Select Build|Configuration Manager and select x86, x64 or ARM from the Platform drop-down list. Now the project builds.

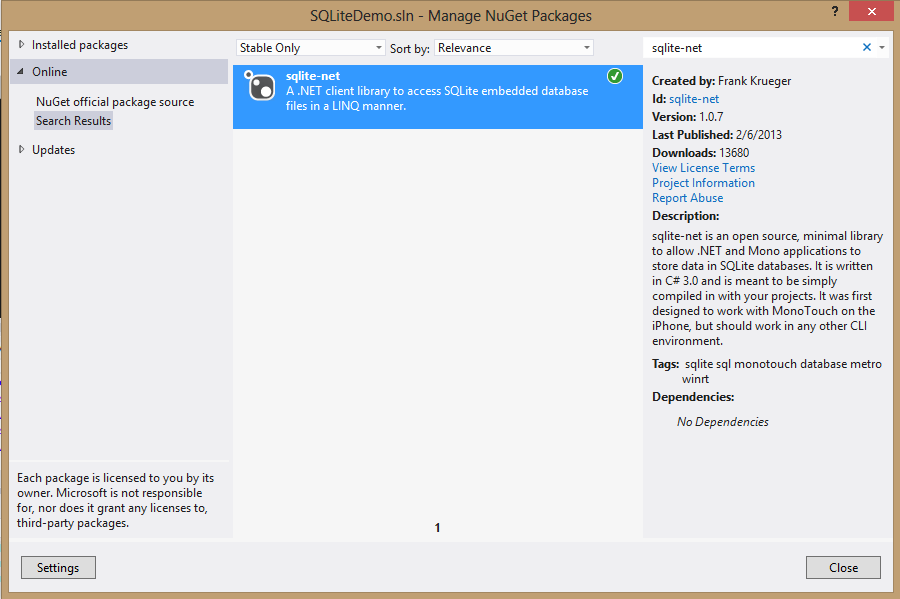

Before you write code to work with SQLite, you should add a NuGet package that will make your life easier. Select Tools|Library Package Manager|Manage NuGet Packages for Solution. In the Manage NuGet Packages dialog, select Online and type sqlite-net in the search text box. The sqlite-net package enables you to work with SQLite databases using a LINQ syntax. After you install it, you will see two new files in your project: SQLite.cs and SQLiteAsync.cs.



NOTE: You can also install this package using the Package Manager Console. Select Tools|Library Package Manager|Package Manager Console and type install-package sqlite-net.

Now you are ready to work with SQLite.

Add a new class. If you want to create a table with two fields, just create a class with two objects as follows. Include "using SQLite" namespace.

[Table("Users")]
    class UserInfo
    {
        [PrimaryKey, Unique]
        public int uId { get; set; }
        public string uName { get; set; }
    }

In above code, we created a Table with fields, uId as PrimaryKey and uName.

Write the following code to create database,

 try
 {
        var path = ApplicationData.Current.LocalFolder.Path + @"\users.db";
        var db = new SQLiteAsyncConnection(path);
        await db.CreateTableAsync<UserInfo>();
 }
 catch { }

In the above code, we are creating database "users" then connecting that database and creating a table asynchronously.

Design the page as shows below,



 XAML code for above design is,

    <Grid Background="{StaticResource ApplicationPageBackgroundThemeBrush}">
        <TextBlock HorizontalAlignment="Left" TextWrapping="Wrap" Text="Uid" VerticalAlignment="Top" Margin="130,124,0,0" Height="51" Width="114" FontSize="36"/>
        <TextBox x:Name="uidtxt" HorizontalAlignment="Left" TextWrapping="Wrap" VerticalAlignment="Top" Margin="276,130,0,0" Width="228" Height="45"/>
        <TextBlock HorizontalAlignment="Left" TextWrapping="Wrap" Text="Name" VerticalAlignment="Top" Margin="130,231,0,0" Height="54" Width="114" FontSize="36"/>
        <TextBox x:Name="unametxt" HorizontalAlignment="Left" TextWrapping="Wrap" VerticalAlignment="Top" Margin="276,231,0,0" Height="41" Width="228"/>
        <Button x:Name="submit" Content="Submit" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="174,324,0,0" Height="51" Width="116"/>
        <Button x:Name="display" HorizontalAlignment="Left" VerticalAlignment="Top" Height="49" Width="113" Margin="333,326,0,0" Content="Display"/>
    </Grid>

After entering data, when I click on Submit button, data should store in a table, following is a code for that,

 var path = ApplicationData.Current.LocalFolder.Path + @"\users.db";
            var db = new SQLiteAsyncConnection(path);

            var data = new UserInfo
            {
                uId = int.Parse(uidtxt.Text),
                uName = unametxt.Text
            };

            int x = await db.InsertAsync(data);

In the above code we are reading the two TextBoxes Data into a variable called “data” and then we are inserting that data into the table.

When I click on Display button, data should display which is stored in table.

            string Result = "";
            var path = ApplicationData.Current.LocalFolder.Path + @"\users.db";
            var db = new SQLiteAsyncConnection(path);
            List<UserInfo> allUsers = await db.QueryAsync<UserInfo>("Select * From Users");
            var count = allUsers.Any() ? allUsers.Count : 0;
            foreach (var item in allUsers)
            {
                Result += "Email: " + item.uId.ToString() + "\nFirst Name: " + item.uName + "\n\n";
            }

            MessageDialog dialog = new MessageDialog(Result.ToString());
            await dialog.ShowAsync();

 In above code, I am retrieving data and displaying in MessageDialog.

 It will display all data which is stored in table.

Windows Store App Development Tutorial - Part 12 : FileSavePicker - Saving Image and Text File

In this tutorial, we learn what is FileSavePicker and how to use it in order to save image and text file.

FileSavePicker allows users to specify the name and location of where they want to save your app's content.


First will see how to save an text file.


In this sample,we take one button that is used to open the FileSavePicker and a textblock to show the status message.

XAML Code:

<Page
    x:Class="SampleFileSavePicker.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:SampleFileSavePicker"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">

    <Grid Background="{StaticResource ApplicationPageBackgroundThemeBrush}">
        <TextBox x:Name="text1" HorizontalAlignment="Left" TextWrapping="Wrap" Text="" VerticalAlignment="Top"   Margin="157,39,0,0" Width="622" Height="80"/>
        <Button Content="Save" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="415,179,0,0" Click="Button_Click_1"/>
    </Grid>
</Page>

In order to use FileSavePicker we have to use following namespaces, add those to Mainpage.xaml.cs

using Windows.Storage.Pickers;using Windows.Storage;

Following is the code for FileSavePicker, write the code in Button click event,

            FileSavePicker picker = new FileSavePicker();
            picker.SuggestedStartLocation = PickerLocationId.DocumentsLibrary;
            picker.FileTypeChoices.Add("Plane Text", new List<string>() { ".txt" });
            picker.DefaultFileExtension = ".docx";
            picker.SuggestedFileName = "New Document";
            StorageFile file = await picker.PickSaveFileAsync();
            if (null != file)
            {
                // Application now has read/write access to the saved file
                await Windows.Storage.FileIO.WriteTextAsync(file, text1.Text);
                MessageDialog msg = new MessageDialog("File Saved Successfully");
                await msg.ShowAsync();
            }
            else
            {
                MessageDialog msg = new MessageDialog("File Was Not Returned");
                await msg.ShowAsync();
            }

In the above code,

• Created an object of FileSavePicker
• Suggested start location
• Added file types the user can save the file as
• Mentioned default extension if the user does not select a choice explicitly from the dropdown
• Suggested file name if the user does not type one in or select a file to replace
•  Getting the text whatever typed in textbox and saving it to file.

Now, build the application and Run by using F5. Type something in Textbox and click on Save button

It opens a FileSavePicker,

Give the file name and choose the location of where you want to save your file. Then, click the save button to save the file.

You get the message of saving the file successfully. Go to the location and see the file. This is how FileSavePicker is used.

Hope this is useful.
Thank You.

Windows Store App Development Tutorial - Part 11 : FileOpenPicker

FileOpenPicker is an UI element, used to choose and open files. In order to use FileOpenPicker, we have to add "Windows.Storage.Pickers" namespace.

In this sample, I am taking a Button and Image control in the design page, whenever user clicks on Button, it opens FileOpenPicker to select an image from the collection of images which are from the local drive of computer. When the user selects a particular image, in binds that with Image control which is present in design page.

XAML Design of the page is as follows,

 <Image x:Name="image1" HorizontalAlignment="Left" Height="194" Margin="275,112,0,0" VerticalAlignment="Top" Width="200" Stretch="UniformToFill"/>
 <Button Content="Click" HorizontalAlignment="Left" VerticalAlignment="Top" Click="Button_Click_1"/>

Following code is about how to use FileOpenPicker, write the code in button click event,

            FileOpenPicker picker = new FileOpenPicker();
            picker.SuggestedStartLocation = PickerLocationId.PicturesLibrary;
            picker.ViewMode = PickerViewMode.Thumbnail;
            picker.FileTypeFilter.Add(".jpg");
            picker.FileTypeFilter.Add(".png");
            var file = await picker.PickSingleFileAsync();
            var stream = await file.OpenAsync(Windows.Storage.FileAccessMode.Read);

In the above code,

• Created an object of FileopenPicker,
• Suggested start location
• Assigned view mode as thumbnails
• Added two file type filters are .jpg, .png
• Reading complete stream of selected image

Now, we have to bind selected image to the image control which is in design page. For that we are using BitmapImage class. In order to use this class, add the "Windows.UI.Xaml.Media.Imaging" namespace.

            BitmapImage bmp = new BitmapImage();
            bmp.SetSource(stream);
            image1.Source = bmp;


In the above code, I am creating object of BitmapImage class,  setting the source to stream and setting image control source to selected image.

I hope this is useful. Thank You.

Windows Store App Development Tutorial - Part 10 : Image Control

In this tutorial, I am going to tell about Image control in windows store app.

Image control is generally used to show image in the application. There are two ways you can add images to your application,

1. Static - Assign the URI of the image in XAML as shown below,

<Image Name="image1" Source="Assets/Logo.png" HorizontalAlignment="Left" Height="194" Margin="275,112,0,0"   VerticalAlignment="Top" Width="200" Stretch="UniformToFill"/>

2. Dynamic - We can add Images in .cs file as shown below,

image1.Source = new BitmapImage(new Uri("ms-appx:Assets/Logo.png"));

OR

BitmapImage bmp = new BitmapImage();

bmp.UriSource = new Uri(this.BaseUri,"Assets/Logo.png");

imag1.Source = bmp;

I hope this is useful. Thank You.
